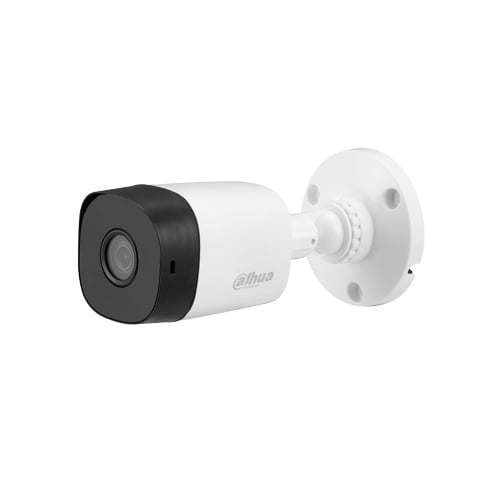

HAC-B1A21P 2.8

2MP HDCVI IR Bullet Camera
Max. 30fps@1080P
HD and SD output switchable
2.8mm fixed lens
Max. IR length 20m, Smart IR
IP67, DC12V

SKUHAC-B1A21P 2.8 Category Tag
Camera
Image Sensor 1/2.7″ CMOS
Effective Pixels 1920(H)×1080(V), 2MP
Scanning System Progressive
Electronic Shutter Speed PAL: 1/25~1/100000s

NTSC: 1/30~1/100000s
Minimum Illumination 0.04Lux/F1.85, 30IRE, 0Lux IR on
S/N Ratio More than 65dB
IR Distance Up to 20m (66feet)
IR On/Off Control Auto / Manual
Lens
Lens Type Fixed lens / Fixed iris
Mount Type Board-in
Focal Length 2.8mm
Max Aperture F1.85
Angle of View H: 93° ( 54.7°)
Focus Control N/A
Close Focus Distance 800mm (2000mm)

31.50” (78.74”)
DORI Distance
Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.
DORI

Definition

 Distance
Detect 25px/m

(8px/ft)

 3.6mm: 51m(167ft)

6mm: 80m(262ft)
Observe 63px/m

(19px/ft)

 3.6mm: 20m(66ft)

6mm: 32m(105ft)
Recognize 125px/m

(38px/ft)

 3.6mm: 10m(33ft)

6mm: 16m(51ft)
Identify 250ppm

(76px/ft)

 3.6mm: 5m(17ft)

6mm: 8m(26ft)
Pan / Tilt / Rotation
Pan/Tilt/Rotation Pan: 0° ~ 360°

Tilt: 0° ~ 90°

Rotation: 0° ~ 360°
Video
Resolution 1080P (1920×1080)
Frame Rate 25/30fps@1080P, 25/30/50/60fps@720P
Video Output 1-channel BNC high definition video output / CVBS video output (Can switch)
Day/Night Auto (ICR) / Manual
OSD Menu Multi-language
BLC Mode BLC / HLC / DWDR
WDR DWDR
Gain Control AGC
Noise Reduction 2D
White Balance Auto / Manual
Smart IR Auto / Manual
Video

1080Full-HD, 20mIR, IP67
Rsolution

2Mpx
Image Sensor

'-
Objectif

2.8mm
IR

20m
