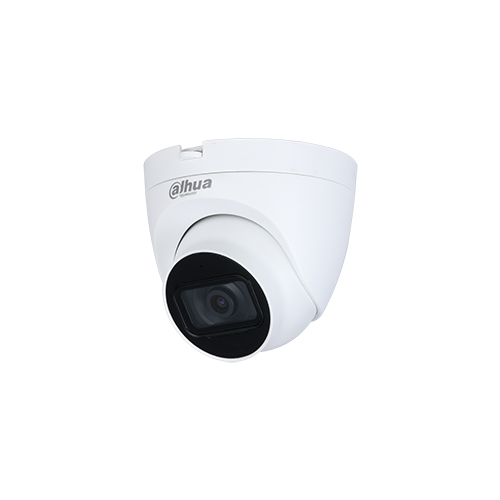

HAC-HDW1500TRQP-A

5MP Starlight HDCVI Quick-to-install IR Eyeball Camera

  •  Quick-to-install eyeball saves installation time
  •  CVI/CVBS/AHD/TVI switchable
  • Built-in mic (-A)
  •  2.8mm fixed lens
  •  Max. IR length 25 m, Smart IR
  •  IP50, DC12V
SKUHAC-HDW1500TRQP-A-28 Category Tag

Lien Téléchargement

Camera
Image Sensor 1/2.7 inch CMOS
Max. Resolution 2880 (H) × 1620 (V)
Pixel 5MP
Scanning System Progressive
Electronic Shutter Speed PAL: 1/25s–1/100000s
NTSC: 1/30s–1/100000s
S/N Ratio >65 dB
Min. Illumination 0.005 Lux/F1.6 30IRE, 0 Lux IR on
Illumination Distance 25m（82.0 ft）
Illuminator On/Off Control Auto; manual
Illuminator Number 2
Pan/Tilt/Rotation Range Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°
Lens
Lens Type Fixed-focal
Mount Type M12
Focal Length 2.8 mm; 3.6 mm
Max. Aperture F1.6
Field of View 2.8 mm: 132° × 111° × 58°

(diagonal × horizontal × vertical)

3.6 mm: 109° × 92° × 48°

(diagonal × horizontal × vertical)
Iris Type Fixed iris
Close Focus Distance 2.8 mm: 0.9 m (3.0 ft)
DORI Distance Lens Detect Observe Recognize Identify
2.8 mm 63.6 m (208.7 ft) 25.4 m

(83.3 ft)

 12.7 m

(41.7 ft)

 6.4 m

(21.0ft)
3.6 mm 80 m

(262.5 ft)

 32 m

(105.0 ft)

 16 m

(52.5 ft)

 8 m

(26.2 ft)
Video
Frame Rate CVI:

PAL: 5M@25 fps; 4M@25 fps; 1080P@25 fps;

NTSC: 5M@25 fps; 4M@30 fps; 1080P@30 fps

AHD:

PAL: 4M@25 fps;

NTSC: 4M@30 fps

TVI:

PAL: 4M@25 fps;

NTSC: 4M@30 fps

CVBS:

PAL: 960H;

NTSC: 960H
Resolution 5M (2880 × 1620); 4M (2560 × 1440); 1080P (1920 × 1080); 960 H (960 × 576/960 × 480)
Day/Night Auto switch by ICR
BLC BLC/HLC/DWDR
WDR DWDR
White Balance Auto; manual
Gain Control Auto; manual
Noise Reduction 2D NR
Smart IR Yes
Mirror Off/On
Privacy Masking Off/On (8 area, rectangle)
Certifications
Certifications CE (EN 55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 55024:2010 A1:2015, EN 55035:2017, EN 50130-4:2011 A1:2014, EN 62368-1:2014 A11:2017)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1 CAN/CSA C22.2 No.60950-1)
Port
Video Output Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Audio Interface One channel built-in mic (-A)
Power
Power Supply 12V ±30% DC
Power Consumption Max 3.0W (12V DC, IR on)
Environment
Operating Temperature -40°C to 50°C (-40°F to 122°F);<95% (non-condensation)
Storage Temperature -40°C to 50°C (-40°F to 122°F);< 95% (non-condensation)
Protection Grade IP50
Structure
Casing Plastic
Dimensions Φ97.1 mm × 93.0 mm (Φ3.82″ × 3.66″)
Net Weight 0.17 kg (0.37lb))
Gross Weight 0.23 kg (0.51lb)
Rsolution

5 Mpx
Image Sensor

1/2.7"
Objectif

2.8mm
IR

25m
