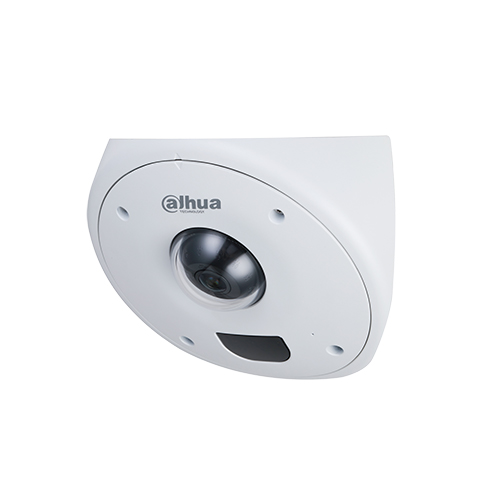

IPC-HCBW8442P

Camera

Image Sensor

1/1.8”4Megapixel progressive CMOS

Max. Resolution

2688 (H) ×1520 (V)

ROM

128 MB

RAM

512 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100000 s

Min. Illumination

0.004 [email protected] (Color, 30IRE)

0.0004 [email protected] (B/W, 30IRE)

0 lux (Illuminator on)

Illumination Distance

10 m (32.8 ft) (monitoring distance)

Illuminator On/Off Control

Auto/Manual

Illuminator Number

2

Pan/Tilt/Rotation Range

Vertical: -10° to 10°
Rotation: 0° to 355°

Lens

Lens Type

Fixed

Mount Type

M12

Focal Length

2.5 mm

Max. Aperture

F2.0

Field of View

Horizontal: 135°
Vertical: 90°

Iris Type

Fixed aperture

Close Focus Distance

0.4 m (1.3 ft)

DORI Distance

Detect

Observe

Recognize

Identify

34.5 m (113.2 ft)

13.8 m (45.3 ft)

6.9 m (22.6 ft)

3.4 m (11.2 ft)

Smart event

General IVS Analytics

Abandoned object; moving object

Heat Map

Yes

Professional, intelligent

Perimeter Protection

Tripwire; intrusion; fast moving (the three functions

support the classification and accurate detection

of vehicle and human); loitering detection; people

gathering; parking detection

People Counting

Support the counting of enter number, leave number and pass number, and displaying and outputting yearly/monthly/daily reports

Support the counting of number in area, and 4 rules configuration. Count number of people or stay time and link alarm

Support queue management, and 4 rules configuration.

Count number of people or stay time and link alarm

Intelligent Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (only supported

by the sub stream)

Smart Codec

Smart H.265 / Smart H.264

Video Frame Rate

Main stream: 2688 × 1520 (1 fps–25/30 fps)

Sub stream: D1 (1 fps–25/30 fps)

Third stream: 1080p (1 fps–25/30 fps)

*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Stream Capability

3 streams

Resolution

2688 × 1520; 2560 × 1440; 2304 × 1296; 2016 × 1512; 1080p (1920 × 1080); UXGA(1600 × 1200); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF(352 × 288/352 × 240)

Bit Rate Control

CBR; VBR

Video Bit Rate

H.264: 32 Kbps–8192 Kbps

H.265: 19 Kbps–8192 Kbps

Day/Night

Auto (ICR)/Color/B/W

BLC

Yes

WDR

140 dB

White Balance

Auto/natural/street lamp/outdoor/manual/regional custom

Gain Control

Manual/Auto

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Electronic Image Stabilization (EIS)

Yes

Smart Illumination

Yes (Adjust by user)

Defog

Yes

Image Rotation

0°/90°/180°/270°

Mirror

Yes

Privacy Masking

4 areas

Audio

Built-in MIC

Yes

Audio Compression

G.711a; G.711Mu; G726;

Network

Network

RJ-45 (10/100 Base-T)

Cyber Security

Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade

Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS;UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP

Interoperability

ONVIF (Profile S/Profile G); CGI; Milestone; Genetec; P2P

Scene self-adaptation (SSA)

Yes

User/Host

20 (Total bandwidth: 80 M.)

Edge Storage

FTP; NAS; Micro SD card (support max. 256 G)

Browser

IE: Versions later than IE 8
Google
Firefox
Apple: versions later than Safari 12

Management Software

Smart PSS; DSS; DMSS

Mobile Phone

IOS, Android

Certification

Certifications

CE-LVD: EN62368-1

CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

FCC: 47 CFR FCC Part 15, Subpart B

Port

RS-485

1 (Baud rate range: 1200 bps–115200 bps)

Audio Input

1 channel (Terminal)

Audio Output

1 channel (Terminal)

Alarm Input

1 channel in: 5mA 3V–5V DC

Alarm Output

1 channel out: 300mA 12V DC

Power

Power Supply

12V DC/PoE (802.3af) /ePOE

Power Consumption

Basic power consumption: 3W (12V DC); 3.6W (PoE)
Max. power consumption (ICR IR full intensity): 9.5W (12V DC); 11.5W (PoE)

Environment

Operating Temperature

–30°C to 60°C (–22°F to 140°F)

Operating Humidity

≤95%

Storage Temperature

–30°C to 60°C (–22°F to 140°F)

Ingress Protection

IP67; IK10 (50J)

Structure

Casing

Metal

Dimensions

209.4 mm × 212.0 mm × 103.1 mm

(8.2″ × 8.3″ × 4.1″) (L × W × H)

Net Weight

1365 g (3.0 lb)

Gross Weight

1465 g (3.2 lb)
