Connection

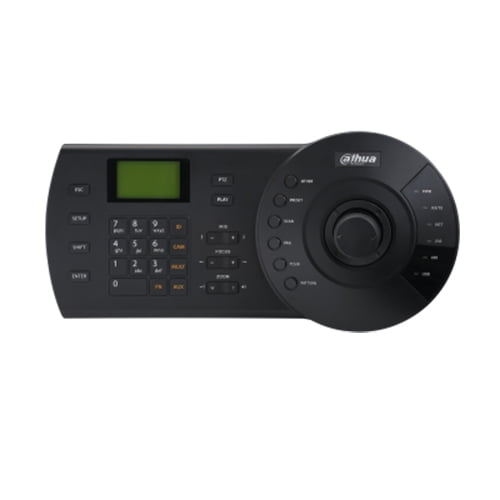

NKB1000: RS485, RS422, USB, RS232 & Network
KB1000 : RS485, RS422 & USB
Functions
Three Dimensional Joystick Control of PTZ Functions
Preset Position, Auto Scan, Auto Pan, Auto Tour & Pattern Auxiliary Functions
Auxiliary Functions
On-Screen Menu & User Operation Procedure Tips
Connect to SmartPSS via USB (NKB1000 only)
| Model | |||
| Model | NKB1000 | KBD1000 | KB1000 |
| General | |||
| Keyboard Key panel | Electromechanical | ||
| Joystick | 3-axis, vector-solving, with twisting, return to-center head | ||
| Keyboard Connector | RJ-45, RS232, RS485, RS422, USB | RS232, RS485, RS422 | RS485, RS422 |
| Keyboard Communication | Direct Mode, Network Mode | Direct Mode | Direct Mode |
| Direct Mode | Interface: RS232/RS485
DVR Protocol: DH2 Dome Protocol: DH-SD/PELCO-D/PELCO-P/PELCO-D1/PELCO-P, etc |
||
| Network Mode | Interface: RJ45
DVR/Network Dome: IP Address/Port/Protocol |
N/A | N/A |
| Display | LCD, 75.2mm×33.85mm | ||
| Environmental | |||
| Power Supply | Power adapter, input 100V~240V 50Hz/60Hz, output DC12V/1000mA | ||
| Power Consumption | 5W | ||
