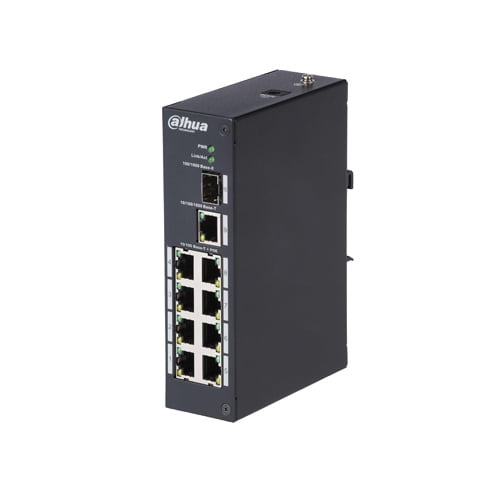

PFS3110-8P-96
8-Port PoE Switch (Unmanaged)
Two-layer industrial PoE switch
MAC auto study and aging, MAC address list capacity is 8K
Support IEEE802.3af, IEEE802.3at standard
Industrial wide temperature design
| Ethernet Port | 1*1000 Base-X 1*10/100/1000 Base-T 8*10/100 Base-T (PoE power supply) |
| PoE Power Consumption | Each power ≤30W, Total≤96W |
| PoE Protocol | IEEE802.3af, IEEE802.3at |
| Switching Capacity | 7.6G |
| Packet Forwarding Rate | 4.17Mpps |
| Packet Buffer Memory | 1Mb |
| MAC Table Size | 8K |
| Flow Control | Enable by default |
| Application Humidity | 10%~90% |
| Power | DC48~57V |
| Lightning Protection | Common Mode 4KV Differential Mode 2KV |
| Working Temperature | -30°C~65°C |
| Weight | 540g |
| Dimension(W×D×H) | 150mm×100mm×42mm |
