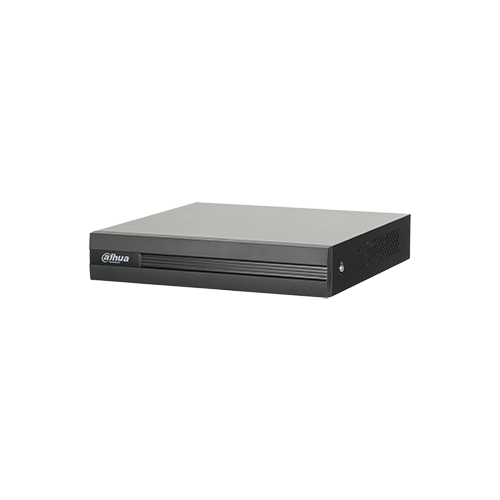

XVR1B04

XVR1B04

4 Channel – H.265 /H.265 Codec decoding –  Supports HDCVI/AHD/TVI/CVBS/IP video inputs – Max 5 channels IP camera inputs, each channel up to 2MP; Max 20Mbps Incoming Bandwidth –  Long transmission distance over coax cable –  Supports 1 SATA HDD, up to 6TB

SKUxvr1b04 Category Tag
Close
Additional information
Video

1200m, coax, cooper, P2P, Plug-play
Close
Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “XVR1B04”

Your email address will not be published. Required fields are marked *

Cancel

System
Main Processor Embedded Processor
Operating System Embedded LINUX
Video and Audio
Analog Camera Input 4 Channel, BNC
HDCVI Camera 4CH: 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps

8CH: 1080P@25/30fps, 720P@25/30fps
AHD Camera 1080P@25/30, 720P@25/30fps
TVI Camera 1080P@25/30, 720P@25/30fps
CVBS Camera PAL/NTSC
IP Camera Input 4CH: 4 1, each channel up to 2MP

8CH: 8 2, each channel up to 6MP
Audio In/Out 1/1, RCA
Two-way Talk Reuse audio in/out, RCA
Recording
Video Compression H.265 /H.265/H.264 /H.264
Resolution 1080N, 720P, 960H, D1, HD1, BCIF, CIF, QCIF
Record Rate Main Stream:

4CH: All channels 1080N/720P/960H/D1/HD1/BCIF/CIF/QCIF(1~25/30fps)

8CH: the 1st channel 1080N/720P(1~25/30fps), others 1080N/720P(1~15fps); 960H/D1/HD1/BCIF/CIF/QCIF(1~25/30fps)

Sub stream:

4CH: CIF/QCIF (1~15fps)

8CH: CIF/QCIF (1~7fps)
Video Bit Rate 32Kbps ~ 4096Kbps Per Channel
Record Mode Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Record Interval 1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
Audio Compression AAC(only for the 1st channel), G.711A, G.711U, PCM
Audio Sample Rate 8KHz, 16 bit Per Channel
Audio Bit Rate 64Kbps Per Channel
Display
Interface 1 HDMI ,1 VGA
Resolution 1920×1080, 1280×1024, 1280×720
Multi-screen Display When IP extension mode not enabled:

4CH: 1/4

8CH: 1/4/8/9

When IP extension mode enabled:

4CH: 1/4/6

8CH: 1/4/8/9/16
OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Network
Interface 1 RJ-45 Port (100M)
Network Function HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter ,DDNS, FTP, Alarm Server, P2P,IP Search (Supports Dahua IP camera, DVR, NVS, etc.)
Max. User Access 128 users
Smart Phone iPhone, iPad, Android
Interoperability ONVIF 16.12, CGI Conformant
